Tunnel Type Omni Directional Tunnel AGV Magnetic Tape Auto Docking With Roller Platform

Name: Tunnel Type Omni Directional Tunnel AGV Magnetic Tape Auto Docking With Roller Platform
Brand: CASUN
Price: 1 USD

China Tunnel Type Omni Directional Tunnel AGV Magnetic Tape Auto Docking With Roller Platform wholesale

Brand Name : CASUN

Model Number : BFQD1800V2

Place of Origin : China, Shenzhen

MOQ : 1 unit

Price : USD

Supply Ability : 200 units / month

Delivery Time : 35 days

Packaging Details : Wooden case

Model : BFQD1800V2

Dimensions : L1800*W680*H950mm or customizable

Load capacity : 200kg

Guidance : Magnetic guidance

Travel speed : 0-35m/min(Or customizing)

Guiding accuracy : ±10mm

Contact Now

Omni Direction Magnetic Tape AGV Steering Wheel Tunnel Type with Roller Platform

1.Product Description:

Roller platform type 360 degree turning AGV (steering wheel drive) adopts a hybrid guidance technology (hardware with magnetic guidance+software with laser guidance ) which developed by our own company . Can spin around 360 degrees and walk with quad motion , can be used flexibly in narrow channels. The platform roller on AGV delivers materials and docks with rollers beside the production line seamlessly. It’s a high-end intelligent AGV product mainly used at the site with the complex scheduling system.

Tunnel Type Omni Directional Tunnel AGV Magnetic Tape Auto Docking With Roller Platform

2. Application:

Widely used for intralogistics solution for loading and uploading materials.

3.Specifications:

Product name	Omni Direction Steering Wheel Tunnel Type with Roller Platform AGV
Model	BFQD1800V2
Dimensions	L1800W680H950mm or customizable
Load capacity	200kg
Minimum turning radius	0, Omni-directional driving
Guidance	Magnetic guidance
Travel Direction	360°Omni-directional driving
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Platform type, omni-directional AGV
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm

4. Advantages:

Omni directional driving
Flexible in narrow aisles
Auto docking with roller platform

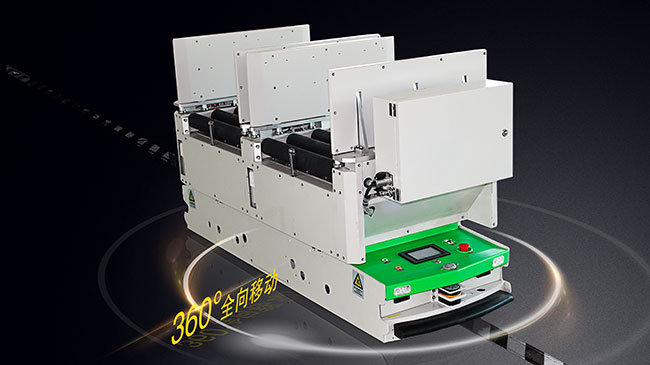

5. Photo:

Tunnel Type Omni Directional Tunnel AGV Magnetic Tape Auto Docking With Roller Platform
