Easy Maintaining Omni Directional Tunnel AGV Material Handling 300kg Loading

Name: Easy Maintaining Omni Directional Tunnel AGV Material Handling 300kg Loading
Brand: Casun
Price: 1 USD

Brand Name : Casun

Model Number : QFQ1600V3

Place of Origin : China, Shenzhen

MOQ : 1 unit

Price : USD

Supply Ability : 200 units / month

Delivery Time : 35 days

Packaging Details : Wooden case

Dimensions : L1600*W420*H290(mm)

Load capacity : 300kg

Minimum turning radius : 0°,omni-directional

Guiding accuracy : ±10mm

Power : DC24V

Life time : ≥10 years

Contact Now

Differential Speed Magnetic Tape AGV Omni Direction Material Handling

1. Product Description:

The differential omni-directional tunnel type AGV adopts differential drive, flexible body, lateral movement, 90-degree steering running, and 180-degree in-situ running.

2. Application:

Applicable to the narrow working conditions of the site, widely used in automotive, electronics, home appliances, machinery and other industries.

Easy Maintaining Omni Directional Tunnel AGV Material Handling 300kg Loading

3. Specifications:

Product name	Differential Speed Omni Direction Tunnel Type AGV (QFQ1600V3)
Model	QFQ1600V3
Dimensions	L1600W420H290(mm)
Load capacity	300kg
Minimum turning radius	0°,omni-directional
Guidance	Magnetic guidance
Travel Direction	Move forward and backward, rotate 360° in situ, branch
Travel speed	0-35m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Tunnel type
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm

4. Advantages:

Difference driving
All direction moving

Easy Maintaining Omni Directional Tunnel AGV Material Handling 300kg Loading

Product Tags:

agv material handling

automated guided robots

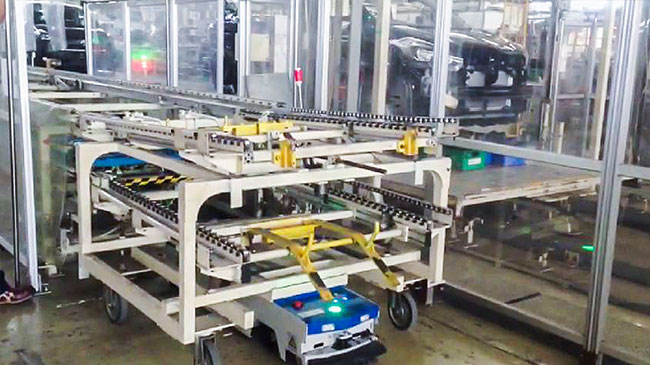

Easy Maintaining Omni Directional Tunnel AGV Material Handling 300kg Loading Images
